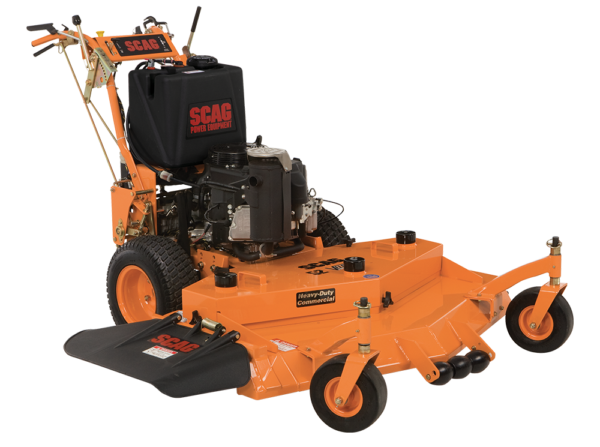

SWZ Hydro-Drive
SWZ Hydro-Drive
Hydraulic power and simple design combine to make the SWZ the most efficient and easy-to-handle walk-behind you can buy. The SWZ has all the features Scag® mowers are famous for: tough, durable components for long life and heavy-duty cutter decks that deliver an unmatched cut.
Discription
| Model | Deck Width | Engine | Horsepower | MSRP |
|---|---|---|---|---|
| SWZ-36A-14FS | 36″ | Kawasaki® FS Series | 14 | $8,199 |
| SWZ-48V-15FSE | 48″ | Kawasaki® FS Series – electric-start | 15 | $8,749 |
| SWZ-52V-18FSE | 52″ | Kawasaki® FS Series – electric-start | 18 | $9,299 |
| SWZL-52V-22FSE | 52″ – large frame | Kawasaki® FS Series – electric-start | 22 | $10,999 |
| SWZL-61V-22FSE | 61″ – large frame | Kawasaki® FS Series – electric-start | 22 | $11,299 |
| Contact your local Scag dealer for specific availability information. | ||||
| Product Dimensions | 36″ SWZ | 48″ SWZ | 52″ SWZ | 61″ SWZ |
|---|---|---|---|---|
| Length | 72″ | 74″ | 76″ | 78″ |
| Width (chute down) | 47″ | 60.5″ | 64.5″ | 73.5″ |
| Width (chute in transport position) | 37″ | 49″ | 53″ | 62″ |
| Weight |
| General | |
|---|---|
| Total Fuel Capacity | 5.5 gallons |
| Drive Tires | 16″ x 6.5″-8″ |
| Caster Tires | 9″ x 3.5″ |
| Seat | n/a |
| Drive System | |
| Drive System Type | Dual Pump and Motor |
| Pumps | Hydro-Gear: 10 cc |
| Motors | Parker 11 ci |
| Forward Ground Speed | Up to 7.4 mph |
| Reverse Ground Speed | 3 mph |
| Parking Brake | Hand lever |
| Deck | |
| Cutting Widths | 36″, 48″, 52″ and 61″ |
| Type | Advantage (36″) Velocity Plus™ (48″, 52″, and 61″) |
| Cutting Height | 1.75″ to 4.5″ in .25″ increments |
| Deck Lift | n/a |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Blade Engagement | Ogura MA-GT-EXM3X (110ft lb) Adjustable air-gap for extended life. |
