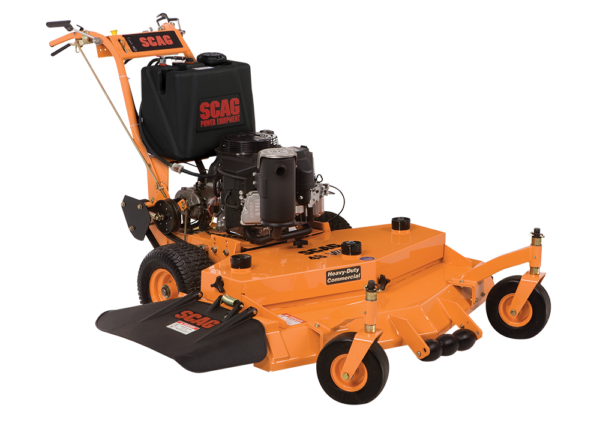

SW Belt-Drive
SW Belt-Drive
Simple-to-maintain belt-drive design and five-speed transmission makes the SW Walk-Behind easy to service and operate. Economical, durable and productive, the SW provides years of dependable operation and an outstanding return on investment.
Discription
| Model | Deck Width | Engine | Horsepower | MSRP |
|---|---|---|---|---|
| SW-32-14FS | 32″ | Kawasaki® FS Series | 14 | $5,349 |
| SW-36A-14FS | 36″ | Kawasaki® FS Series | 14 | $5,399 |
| SW-48V-14FS | 48″ | Kawasaki® FS Series | 14 | $5,799 |
| SW-52V-15FS | 52″ | Kawasaki® FS Series | 15 | $6,499 |
| Contact your local Scag dealer for specific availability information. | ||||
| Product Dimensions | 32″ SW | 36″ SW | 48″ SW | 52″ SW |
|---|---|---|---|---|
| Length | 70″ | 72″ | 76″ | 76″ |
| Width (chute down) | 43″ | 47″ | 60.5″ | 64.5″ |
| Width (chute in transport position) | 33″ | 37″ | 49″ | 53″ |
| Weight | 450 lb | 470 lb | 515 lb | 535 lb |
| General | |
|---|---|
| Drive System Type | Belt Drive with 5-Speed Peerless Transmission |
| Deck | |
| Cutting Widths | 32″, 36″, 48″ and 52″ |
| Cutting Height | 1.75″ to 4.5″ in .25″ increments |
| Reverse Ground Speed | 2 mph |
| Total Fuel Capacity | 5.5 gallons |
| Caster Tires | 9″ x 3.5″ |
| Drive Tires | 13″ x 5″-6″ (32″) 13″ x 6.5″-6″ (36″, 48″ and 52″) |
| Blade Engagement | Ogura MA-GT-EXM3X (110ft lb) Adjustable air-gap for extended life. |
| Drive System | |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Parking Brake | Hand lever |
| Seat | n/a |
| Pumps | n/a |
| Motors | n/a |
| Deck Lift | n/a |
| Type | Standard (32″) Advantage (36″) Velocity Plus™ (48″ and 52″) |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. 32″ model features dual-plate. |
| Forward Ground Speed | Up to 6 mph |
