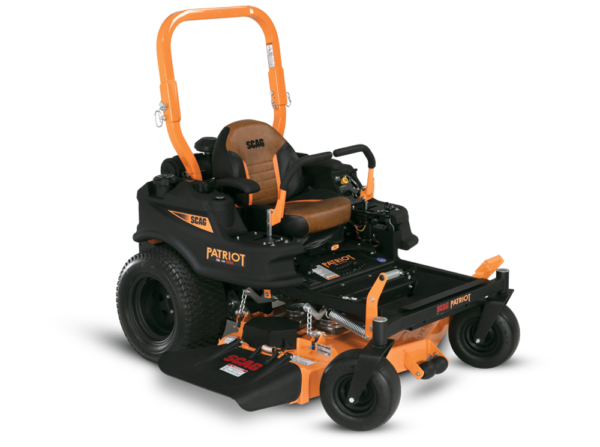

Patriot

Built to deliver low-maintenance and high-performance operation, the Patriot™ makes a statement; it says you’re a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customers—and their neighbors—saluting your handiwork.

Discription

Engine & Deck Combinations
Product Dimensions
Specifications

Model	Deck Width	Engine	Horsepower	MSRP
SPZ-52H-22FX	52″	Kawasaki® FX Series	22	$9,529
SPZ-52H-23CV	52″	Kohler® Command PRO®	23	$9,199
SPZ-52H-24FT	52″	Kawasaki® FT Series	24	$9,429
SPZ-52H-25ZT	52″	Kohler® Confidant	25	$8,599
SPZ-52H-26BV	52″	Vanguard™ BIG BLOCK™	26	$9,539
SPZ-52H-27CX	52″	Briggs & Stratton® CXi Series™	27	$9,199
SPZ-61H-23FX	61″	Kawasaki® FX Series	23	$10,249
SPZ-61H-25ZT	61″	Kohler® Confidant	25	$8,999
SPZ-61H-25CV	61″	Kohler® Command PRO®	25	$9,749
SPZ-61H-26BV	61″	Vanguard™ BIG BLOCK™	26	$10,119
SPZ-61H-27CX	61″	Briggs & Stratton® CXi Series™	27	$9,749
Contact your local Plainspowerandturf dealer for specific availability information.

Product Dimensions	52″ Patriot	61″ Patriot
Length	73″	79″
Width (chute down)	64.5″	73.5″
Width (chute in transport position)	53″	62″
Height (ROPS folded)	46.5″	47″
Height (ROPS up)	61″	61″
Weight	907-911 lb	952-956 lb

General
Total Fuel Capacity	6.5 gallons
Drive Tires	22″ x 10.5″-12″ (52″) 24″ x 12″-12″ (61″)
Caster Tires	13″ x 6.5″-6″
Seat	Torsion-spring suspension seat
Drive System
Drive System Type	Hydro-Gear ZT3100 Transaxle (52″) Hydro-Gear ZT3400 Transaxle (61″)
Pumps	ZT3100 Internal Pump: 10 cc (52″) ZT3400 Internal Pump: 12 cc (61″)
Motors	Internal Motor: 16 cc
Forward Ground Speed	8.5 mph (52″) 10 mph (61″)
Reverse Ground Speed	5 mph
Parking Brake	Foot-operated pedal
Cutting Widths	52″ and 61″
Cutting Height	1.5″ to 5″ in .25″ increments
Deck
Spindles	Aluminum housing with sealed ball bearings.
Construction	Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Deck Lift	Foot-operated pedal
Type	Hero Cutter Deck
Blade Engagement	Ogura GT2 (108 ft lb) Adjustable air-gap for extended life.
