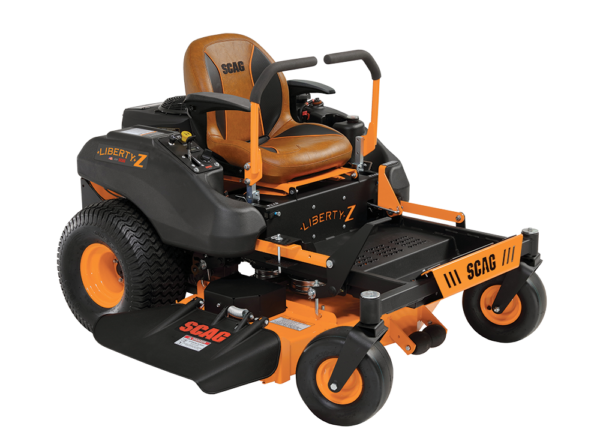

Liberty Z

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Plainspowerandturf® machines are Simply the Best.

Discription

Engine & Deck Combinations
Product Dimensions
Specifications

Model	Deck Width	Engine	Horsepower	MSRP
SZL-36H-18FR	36″	Kawasaki® FR Series	18	$5,999
SZL-36H-20KT	36″	Kohler® 7000 Series	20	$5,599
SZL-36H-20PX	36″	Briggs & Stratton® PXi Series™	20	$5,699
SZL-42H-21FR	42″	Kawasaki® FR Series	21	$6,299
SZL-42H-22PX	42″	Briggs & Stratton® PXi Series™	22	$5,999
SZL-42H-22KT	42″	Kohler® 7000 Series	22	$6,099
SZL-48H-21FR	48″	Kawasaki® FR Series	21	$6,349
SZL-48H-22KT	48″	Kohler® 7000 Series	22	$6,099
SZL-48H-22PX	48″	Briggs & Stratton® PXi Series™	22	$6,099
SZL-48H-24SR	48″	Scag SR Series	24	$5,999
SZL-52H-23FR	52″	Kawasaki® FR Series	23	$6,749
SZL-52H-24SR	52″	Scag SR Series	24	$6,199
SZL-52H-24KT	52″	Kohler® 7000 Series	24	$6,499
SZL-52H-24PX	52″	Briggs & Stratton® PXi Series™	24	$7,399
SZL-61H-24FR	61″	Kawasaki® FR Series	24	$7,249
SZL-61H-26KT	61″	Kohler® 7000 Series	26	$6,899
SZL-61H-27SR	61″	Scag SR Series	27	$6,999
Contact your local plainspowerandturf for specific availability information.

Product Dimensions	36″ Liberty Z	42″ Liberty Z	48″ Liberty Z	52″ Liberty Z	61″ Liberty Z
Length	68.5″	68.5″	67.5″	67.5″	73.5″
Width (chute down)	48.5″	54.5″	60.5″	64.5″	73.5″
Width (chute in transport position)	37″	43″	49″	53″	62″
Height	40″	41″	41″	41″	41″
Weight	555 lb	595 lb	612 lb	646 lb	695 lb

General
Total Fuel Capacity	3.5 gallons (36″ and 42″) 5.5 gallons (48″, 52″ and 61″)
Drive Tires	20″ x 8″-10″ (36″) 20″ x 10″-8″ (42″, 48″ and 52″) 20″ x 10″-10″ (61″)
Caster Tires	11″ x 4″-5″ (36″ and 42″) 11″ x 6″-5″ (48″, 52″ and 61″)
Seat	Padded with arm rests, adjustment forward and back (tools required) (no armrests on 36″ and 42″ models)
Drive System
Drive System Type	36″ and 42″ models: Hydro-Gear ZT-2800 Transaxle 48″, 52″ and 61″ models: Tuff Torq TZ450 Transaxle
Pumps	Internal Pump: 10 cc
Motors	Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
Forward Ground Speed	7 mph
Reverse Ground Speed	5 mph
Parking Brake	Hand lever
Deck
Cutting Widths	36″, 42″, 48″, 52″ and 61″
Cutting Height	1.5″ to 4.5″ in .25″ increments
Spindles	Aluminum housing with sealed ball bearings.
Construction	Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Deck Lift	Foot-operated pedal
Type	Heavy-Duty Hero Cutter Deck
Blade Engagement	Ogura GT1 (74 ft lb) – (36″, 42″, 48″ and 52″) Ogura GT2 (108 ft lb) – (61″) Adjustable air-gap for extended life.
